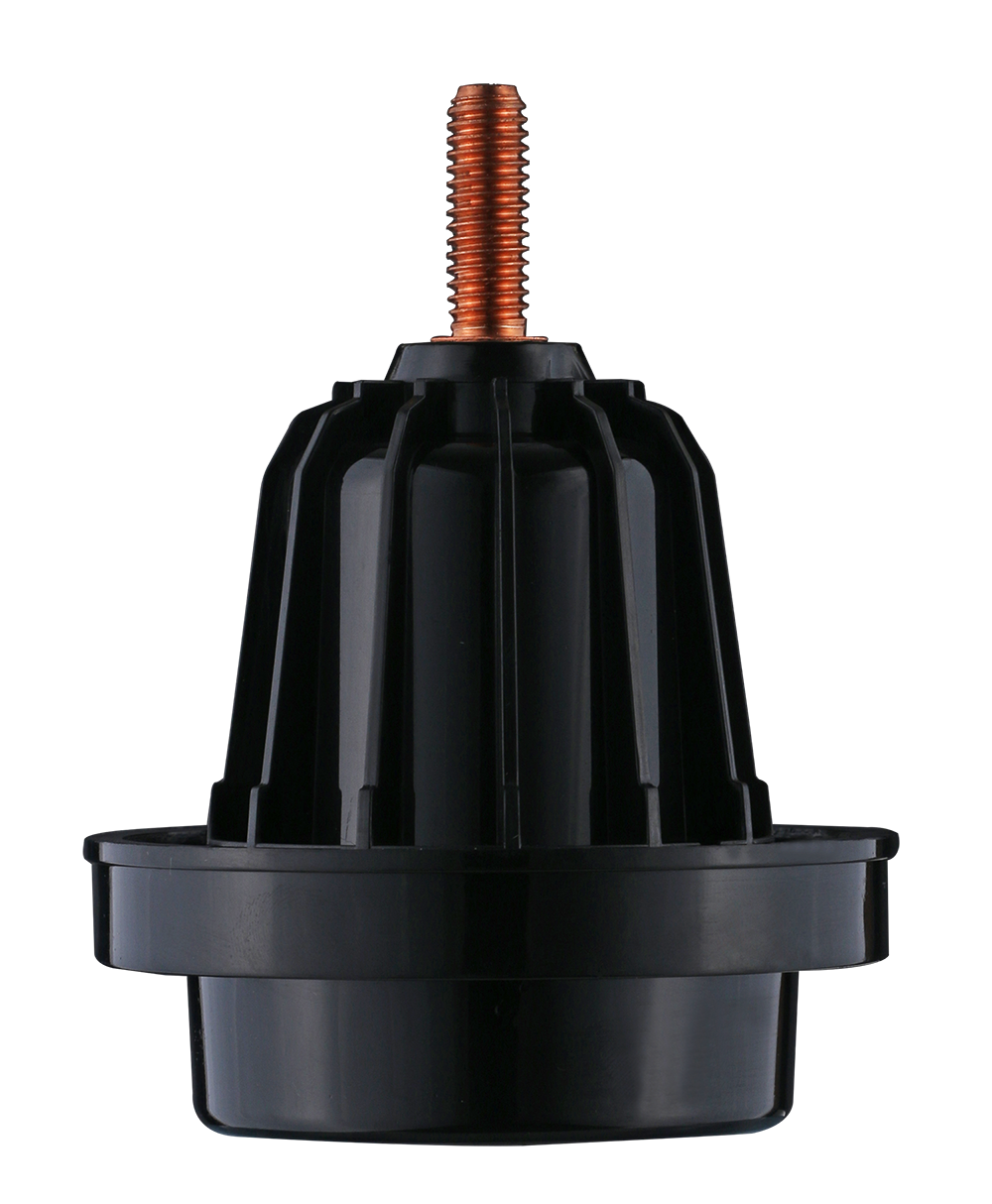

15kV 200A Bushing Well

The Nanrui 200A 15kV Class bushing well meets all requirements of IEEE standard 386-1995 (separable insulated connector system).It is designed for the termination of primary winding leads at the face plate of oil single phase and three phase transformers and switchgear rated at 8.3/14.4kV, 15.2/26.3kV, 16.2/28.0 kV and 21.1/36.6 kV.

Product Details

Product Standards

● ANSI IEEE Std386-2006 Separable insulated connector systems for power distribution systems above 600V.
● Exposed semiconductor sheath for ANSI IEEE592-1990 high voltage cable splices and separable insulated connectors.
● IEC60502 accessories for extruded insulated power cables with rated voltages above 6kV (Um = 1.2kV) to 30kV (Um = 36kV).
Method of test for accessories for power cables with rated voltages from 6kV (Um = 7.2kV) to 30kV (Um = 36kV) for IEC61442.
● Extruded insulated power cables and their accessories for GB12706-2002 rated voltages from 1kV (Um = 1.2kV) to 35kV (Um = 40.5kV).
● GB311.1-1997 the insulation coordination of high-voltage power transmission and distribution equipment.
GB/T41.9-1999 Technical Conditions for High Voltage Bushing.
GB11032-2010 AC gapless metal oxide arrester.
● DIN47636-7-1990 of power cable accessories with protruding cones, bushings with Um below 36kV and dimensions of connectable equipment.

translated by DeepL.com (free version)

Performance Parameters

Serial Number	Project	Unit	reference value
1	Rated voltage	kV	15
2	Rated current	A	200
3	AC power frequency withstand voltage	kV/15min	34
4	Bureau Release	≤ PC(kV)	5 (11KV)
5	Impact test	kV	95
